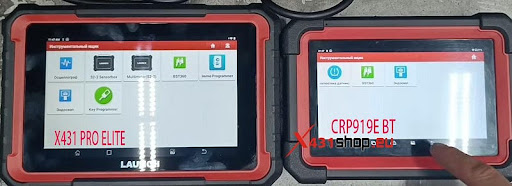

LAUNCH CRP919X BT is the latest product in the CRP series, and both its functions and hardware have been greatly updated. So what is the difference between CRP919X BT and the traditional X431 small-size tablet Pros Elite ? This article will compare the two. Note: CRP919X and CRP919E have the same functions and can be regarded as the same product customized by different dealers. LAUNCH X431 Pros Elite vs LAUNCH CRP919X BT:   In Sum: The VCI of the two devices is different: LAUNCH CRP919XBT is equipped with DBScar VII, and supports Bluetooth connection; LAUNCH X431 PROS Elite is not equipped with DBScar VII, only supports USB connection. CRP919X BT has fewer functions than X431 PROS Elite and supports fewer expansion modules. LAUNCH X431 PRO ELITE expansion modules : Oscilloscope, S2–2 Sensorbox, Multimeter(S2–2), Battery Tester(BST360), IMMO Programmer(X-PROG3), TPMS(i-tpms/ TSGUN), Key Programmer. LAUNCH CRP919E BT expansion modules : TPMS(i-tpms/ TSGUN), Ba...

 Hello guys! Today I’m gonna show how to do Scania PWM Signal to Altemator(%) test with LAUNCH X431 PAD V Elite + Smartlink C (HD3) . It’s an easy actuation test that can be done in 2 minutes. Connect PAD5 Elite & SmartLink C to vehicle OBD diagnostic port. Open X-431 HD APP. Local diagnosis >> Scania >> OK >> CAN Automatic Identification >> System Scan Wait full system scanning for a while… The system list displays more detailed information. EMS(Engine Management System) >> OK >> Actuation Test >> PWM Signal To Alternator(%) Test Conditions: During actuation, the engine RPM and vehicle speed must be 0. If the engine RPM and vehicle speed are recorded or signal is lost, actuation is impossible. Click "New Value". Input a integer: 1 OK >> Write Do you want to write the new value into the ECU? Yes Writing completed. Click "Read" to refresh the data. The current value has changed to "1...

 The new LAUNCH X431 PAD V is equipped with Smartlink C, which has the function of diagnosing heavy trucks. For example, you can use LAUNCH X431 PAD V in Scania for Cylinder Deactivation Test. We’ll show you how to do this next. Note: X431 PAD V + Smartlink C can support 85+ HD brands, suitable for heavy-duty (Class 4 to 8) and medium-duty trucks (such as heavy trucks, city buses, bulldozers, excavators, etc.). Just purchase the HD software, no HD module is required. First, Device Connection Vehicle OBD Diagnostic Port. The following steps are performed on the X431 PAD V device: Open X-431 HD APP. Click on [Local Diagnostis], in the "Manufacturer" column select [Scania]. Confirm the software version (V15.70), and click [OK]. Select [CAN Automatic Identification]. Click on [System Scan] for a full vehicle checkup. X431 PAD V will diagnose the vehicle, and the [System List] column will display more detailed information. Click on [Enter], and clink on ...

 Can LAUNCH-X431 XPROG3 read and write Renesas Encrypted RH850 MCUs? The answer is yes, but you need to LAUNCH RH850 Adapter . Note: Need to Launch IMMO software V10.95 or above to support. LAUNCH RH850 Adapter Supported Chip List: Supports 48-PIN, 80-PIN, 100-PIN, 144-PIN, 176-PIN MCUs R7F701002 R7F701003 R7F701006 R7F701007 R7F701008 R7F701009 R7F701010 R7F701011 R7F701012 R7F701013 R7F701014 R7F701015 R7F701016 R7F701017 R7F701018 R7F701019 R7F701020 R7F701021 R7F701022 R7F701023 R7F701024 R7F701025 R7F701026 R7F701027 R7F701028 R7F70I029 R7F701030 R7F70I032 R7F701033 R7F701034 R7F701040 R7F701041 R7F701042 R7F701043 R7F701044 R7F701045 R7F701046 R7F701047 R7F701048 R7F701049 R7F701050 R7F701051 R7F701052 R7F701053 R7F701054 R7F701055 R7F701056 R7F701057 Connection method: Connect LAUNCH-X431 RH850 Adapter to MCU and MCU harness according to the Pinout below. RH850 Adapter MCU MCU harness VOUT ISOVCL × GND ISOVSS × VCC × 3 IN × 5 LAUNCH-X431 XPROG3...

 Since ThinkCar ThinkScan Max 2 is the upgraded version of ThinkScan Max OBD2 scanner , what’s it new and different from the old one? Here we’ve listed all details from hardware to software for comparison. Read this article carefully, you’ll definitely find the answer. Comparison Table New Features The hardware configuration has improved: ROM is expanded to 32GB and battery capability is expanded to 3150mAh. Newly added CAN-FD protocol to support the GM vehicles manufactured after 2021. Added the voltage monitoring function. Apart from the above, others are basically the same. Conclusion ThinkScan Max 2 is coming with larger ROM that will improve running speed than ever. Besides, the CANFD protocol means to support more car models than before. For any purpose, the new ThinkScan Max 2 would be a better choice. ThinkScan Max vs. Thinkdiag THINKCAR series comparison: Thinkdiag vs Thinkdiag2 vs ThinkPlus vs ThinkScan Max Technical Support Skype: X431Shop.eu ...

 THINKCAR diagnostic products currently include Thinkdiag , Thinkdiag2 , ThinkPlus, and ThinkScan Max2 . This article will compare the differences between these products. Differences: Price: Thinkdiag is the cheapest. ThinkPlus is the most expensive. Device Type: Thinkdiag is a Bluetooth tool that requires a smartphone app. ThinkPlus and ThinkScan Max 2 are standalone touchscreen tablets. Hardware Configuration: ThinkScan Max 2 has the best hardware, including an improved system, RAM, ROM, screen, battery, and WiFi. Software Functions: ThinkScan Max 2 supports more functions, including 28 free reset services, CAN-FD, ECUAIC, screenshots, voltage monitoring, and 15 languages. Updates: Only ThinkScan Max 2 offers lifetime free upgrades with no subscription fees. Similarities: All models can diagnose 12V passenger cars. All support full system diagnosis, reset services, ECU coding, flash hidden, initialization, bidirectional tests, auto VIN, dia...

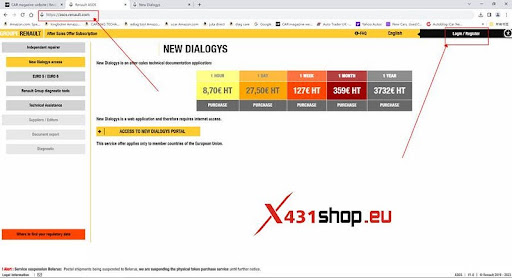

 Some LAUNCH X431 diagnostic devices do not list the Renault SGW function authorization in the mall, but they can actually support unlocking the Renault SGW. This article will introduce how to unlock the Renault SGW function for these X431 devices . Operation process: 1. Enter [https://asos.renault.com/#/presentation], ragister and login. Login and select ‘ ACCESS TO OFFERS ’. You need to download the SGW unlock software and buy token, you also need to buy physical token（USB）. There would be operation guide on the page. 2. Install the software in the PC and insert the USB token 3. Connect the Smartlink connector to the vehicle and PC. 4. Open the unlock software and follow the instructions step by step until the unlock is complete. www.x431shop.eu

 Which is the 2024 best automotive diagnostic tool? Here we've picked out 2 hot-sellers for comparison: Thinktool Pro & LAUNCH X431 PRO5 Scan Tool . Covering hardware configuration, basic & advanced diagnosis, protocol and scalability. Hope this can help to make it clear. Comparison Table Price LAUNCH is expensive than Thinktool in price. Hardware LAUNCH is equipped with better configuration than Thinktool, such as larger ROM, RAM, battery capacity, screen size, one more camera and SmartLink 2.0 VCI. Software Both LAUNCH & Thinktool can do basic diagnosis like read & clear code, view data stream, full system diagnose, ECU coding, bidirectional test, remote diagnosis, etc. LAUNCH is able to do advanced diagnosis while Thinktool is not. Like online & offline programming, online coding, online FFS activation, online calibration & matching, guided function, flash hidden function, etc. LAUNCH supports 31 kinds of reset service while Think...

  Advantages of Purchasing the Full Version Investing in the full version of the Thinkcar Thinkdiag offers numerous benefits, particularly for those who require extensive diagnostic capabilities across a wide range of vehicle brands. Here’s why it’s worth considering: Comprehensive Coverage : Full car brands. All manufacturer software for free. Advanced Features : All special functions unlocked, ECU coding, Bi-directional testing and adaptations. Cost-Effective : You can buy Thinkdiag with 2 free car brands. For those who only need diagnostics for one or two cars, the Thinkdiag OBD2 scanner with limited brand access may suffice. However, for broader and more professional use, full activation is highly recommended. How to Purchase and Activate Thinkdiag for Full Brand  Access Method 1: Through a Licensed Retailer Purchase the License : Visit a trusted retailer like x431shop.eu to purchase the Thinkdiag All Car Brands Activation License . Provide Adapter Seria...

 The LAUNCH X431 PRO3S+ equipped with SmartLink HD module , which can support heavy truck diagnostics and is the latest truck diagnostic device from LAUNCH in 2024. It supports a number of special functions, including DTC testing and resetting, and has a topology function that allows you to view the status and number of DTCs for each module in the vehicle on one page. This article will describe how to test SCANIA Windscreen Wipers. Operation steps: Connect X431 SmartLink HD to the vehicle diagnostic OBD port, and connect to X431 PRO3S+ scanner via WiFi Open X-431 HD APP Click on [Local Diagnosis] Click on [Scania] Confirm the Scania diagnostic software (i.e V15.70), and click [OK] Connect the VCI in WiFi mode Click on [CAN Automatic Identification] Click on [System Scan] for a full vehicle checkup Wait a while… Click on [VIS] and click on [ENTER] Confirm the vehicle info detected Click on [Actuation Test] Click on [Windscreen Wipers, Low Speed] Pay att...
