LAUNCH X431

 In this post, we'll show how to do automatic programming and manual programming sensors with Launch i-TPMS Handheld Tool . So that we can encode the Launch LTR Sensor and replace the damaged sensor. Automatic Programming Programming >> Auto >> Programming During the process, we'll have to put the Launch sensor besides the i-TPMS Tool as close as possible. (In order to make the sensor adapted to the car system, we should continue to the learning part.) Before start learning sensor, connect OBD cable to the car. Learning >> OBD learning Sensor learning succeeded! As seen on the X431 PAD 7 tablet, we've successfully cleared the DTC. The whole automatic programming process is completed. Manual Programming Before starting, we have to find the OE sensor ID which is written on sensor. Programming >> Manual >> Type in OE sensor ID >> Programming During the programming process, we'll have to put the Launch sensor b...

 This is a tutorial on how to add a 2020 Buick Enclave smart key with Launch X431 IMMO Plus + X431 Key Programmer by OBD . For users who are using X431 IMMO Elite or IMMO PRO can follow the below steps as well. Step1. Generate Key Key Programmer >> Update Check if the software is latest version. Put the original key into X431 Key Programmer key slot. Read Transponder >> Read Transponder Remember the original key chip type is Transponder 46. Enter "Frequency Detection". Put the original key next to X431 Key Programmer, press remote control button to identify the key frequency. Put the new key into X431 Key Programmer to generate. Vehicle Remote >> Buick >> All remotes >> Enclave(2018–2019) KeylessGo ID46 433 >> Generate Burn successfully. Step2. Add Key After successful generation, open anti-theft software to add key. IMMO >> GM >> OK >> Anti-Theft Key Matching >> Manually Select(via Mode...

 The latest Launch X431 i-TPMS in 2024 can program the LAUNCH LTR RF sensor unlimited times to replace the OE sensor. So what is the difference between i-TPMS and the old TSGUN product? To be honest, functionally it is the same. But TSGUN must be combined with Launch X431 scanners to perform TPMS function. The device itself is not working. But i-TPMS will combine with Launch X431 scanners. It also works standalone via i-TPMS app. TSGUN is positioned as an accessory for the LAUNCH X431 diagnostic tool , while i-TPMS is more like an independent TPMS tool. Scan QR code here to download i-TPMS App for Android ONLY For Android system smartphone user, scan the following QR code or the QR code on the back of the i-TPMS device to download and install the i-TPMS app on the phone. Launch i-TPMS mobile APP Function: Brand new mode, combined with i-TPMS mobile APP can Replace the tire pressure sensor Activate sensor Program sensor ID Query sensor OE part number Generate...

 Most automotive maintenance personnel have not used oscilloscopes and are accustomed to using multimeters to detect car faults. They are unfamiliar with the functions of oscilloscopes and consider them mysterious. In the following, the author introduces some main performance parameters of oscilloscopes to unveil its mysteries. Why use an oscilloscope for car repairs? The refresh rate of a digital multimeter is usually around 2 times per second (some high-end ones can reach 4 times per second). When measuring a signal voltage with it, the displayed reading on the screen is not the actual voltage but an average voltage due to the slower refresh rate. For example, when measuring the voltage of a "Variable Valve Timing Solenoid Circuit" with a multimeter, the voltage is around 8.7V. Is this the actual voltage? Explanation: The red line is the power supply line, and the engine control unit controls the blue line (control line). Using an oscilloscope reveals that ...

  LAUNCH X431 SmartLink C V2.0 is the adapter installed on the latest LAUNCH diagnostic products. The function positioning of this product is to benchmark HD III : used for diagnosis of heavy-duty trucks. This article will discuss the differences between SmartLink C V2.0 and HD III. First we compare the parameters: A brief summary of the differences between the two: SmartLink C has new system, dual processor, large ROM and RAM SmartLink C supports Ethernet LAN connection, HD3 does not. Compared with X-431 HDIII, the SmartLink C 2.0 is more powerful in function. The transmission speed is faster and more stable. The visual operation interface makes it more convenient. It supports commercial vehicles, passenger vehicles, new energy and other truck models. It supports super remote diagnosis. HDIII is not compatible with X431 Pro5 , SmartLink C does support Pro5. Launch X431 HD III and SmartLink C V2.0 are very different in terms of accessories. We have listed all...

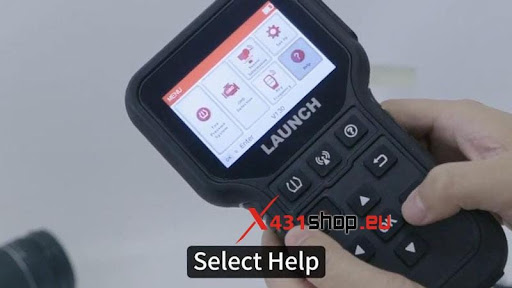

 This is a tutorial on how to upgrade LAUNCH CRT5011E TPMS Relearn Tool for the first time. Read this article carefully to learn. Take out Launch 5011E device, press and hold the start button to power on. Select "Help" and "Tool information", find SN & register code to record. Unbox to find a code reader, take out 5011E device and click to eject the SD card. Insert the SD card into the card reader. Prepare a WIN7 or WIN10 computer, open PC browser to enter Launch official website: x431.com . Select "Service & Support >> Download >> DIY integration upgrade tool" to download. Install the update tool to computer. Insert the card reader to computer Open update software >> Select language >> Device Upgrade >> Select All, Download Unplug card reader from computer, take out SD card and insert to 5011E device. Start the device and wait for upgrade to complete. www.x431shop.eu
