LAUNCH X431 IMMO PLUS Program 2020 Ford Bronco ID49 Key
This is a tutorial on how to program 2020 Ford Bronco ID49 Key with LAUNCH X431 IMMO PLUS by OBD. The procedure also applies to X431 IMMO ELITE & X431 IMMO PRO.
Step1. Generate Remote

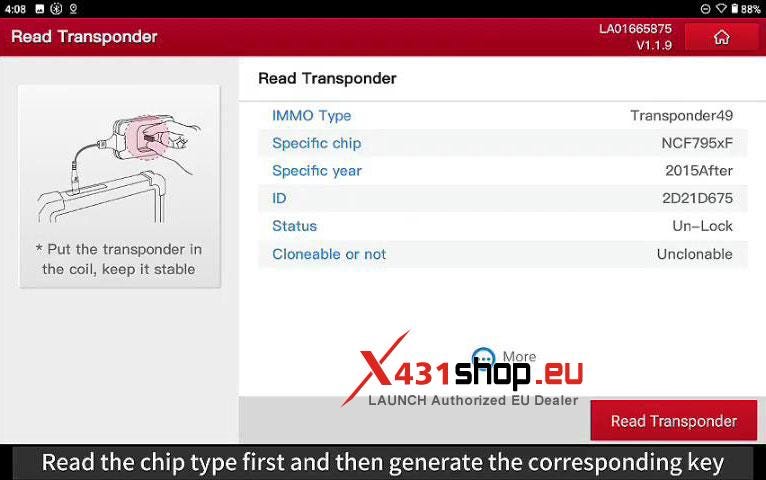

- Connect to X431 IMMO Key Programmer and read the chip type first.
- Then generate the corresponding key.

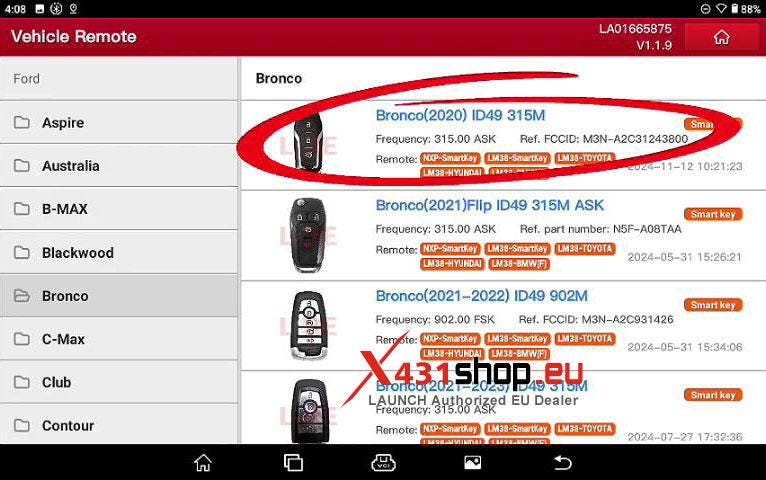

Vehicle Remote >> Ford >> Bronco(2020) ID49 315M >> Generate

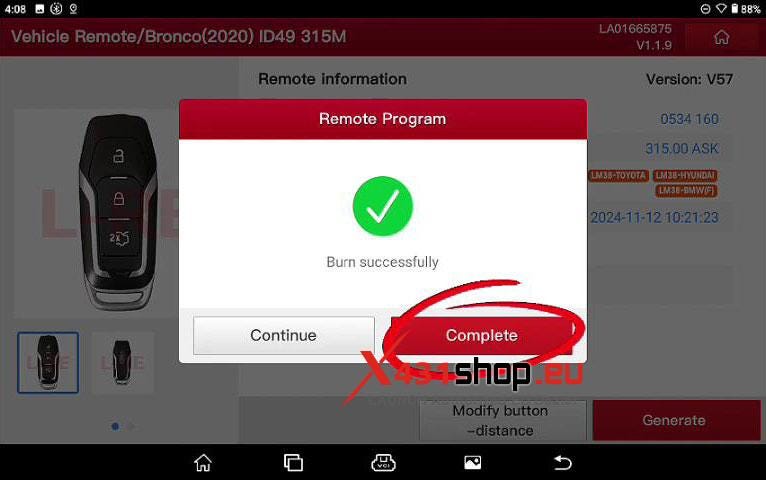

Burn successfully.
Step2. Program Key
IMMO >> FORD >> Anti-Theft Key Matching >> Automatically Search
Set ignition switch to ON(Position II).
Confirm the VIN, press YES.

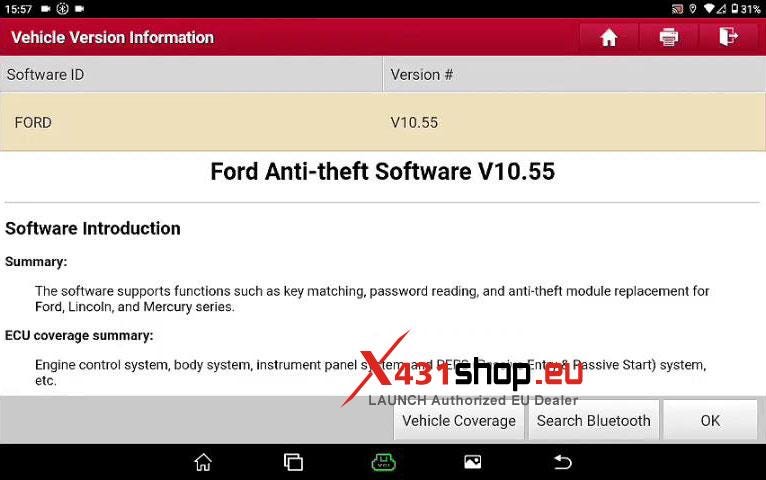

Immobilizer System Function(Expert Edition) >> PATS(Passive Anti-Theft System) Programming
This application enables programming of vehicle keys and matching of the components of the immobiliser system.
Press YES.
Check the "Count Keys".

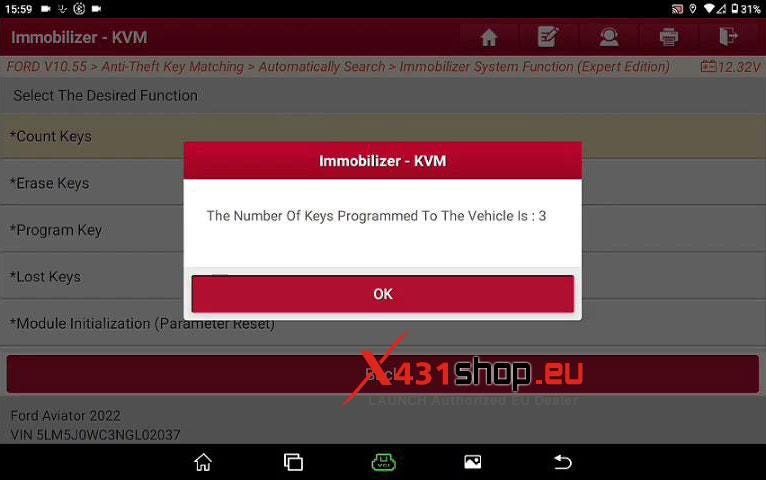

The number of keys programmed to the vehicle is 3.

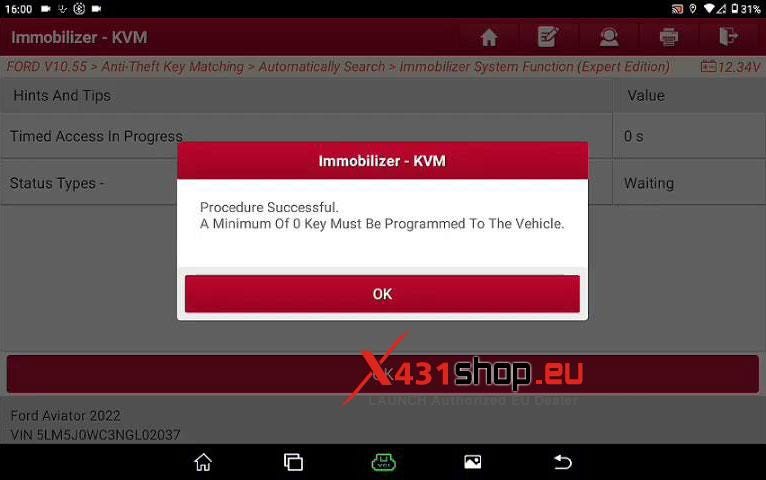

Press "Erase Keys" to delete all keys.
Program Key >> OK

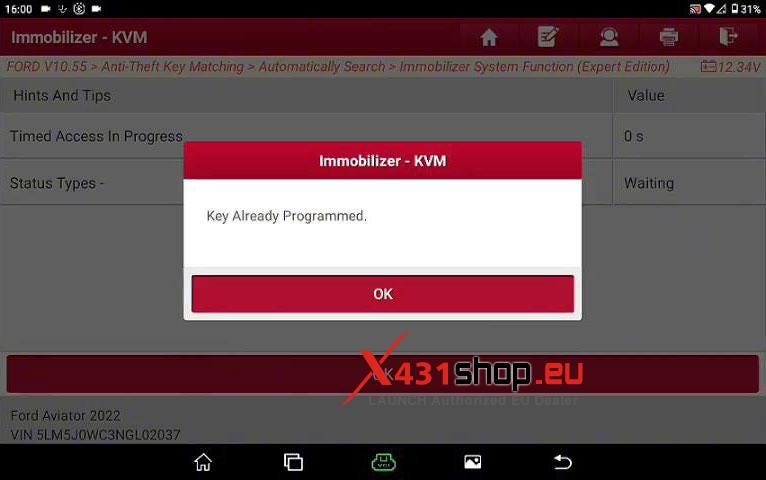

Key already programmed.
Lost Key >> OK
The alarm may sound and there will be a 10 minute time delay.
Key already programmed.
Press "Module Initialization(Parameter Reset)"
Turn Ignition To ON(Pos II)
Turn Ignition To OFF(Pos 0)
Turn Ignition To ON(Pos II)
Turn Ignition To OFF(Pos 0)

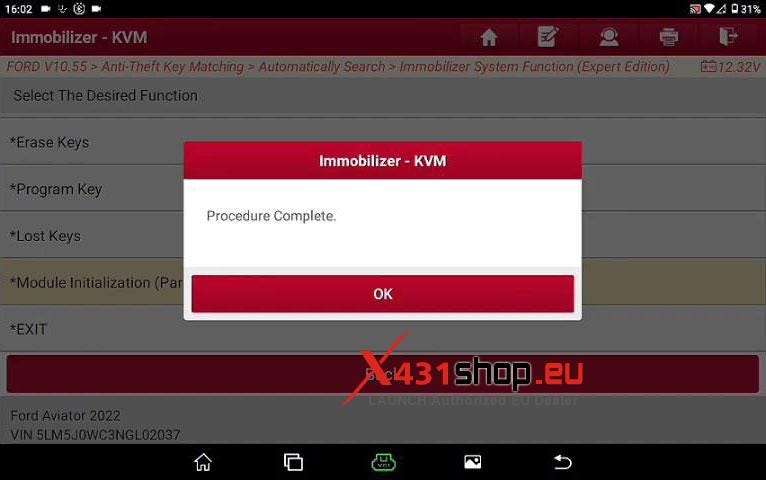

Procedure complete.
